当前产品-规格书下载

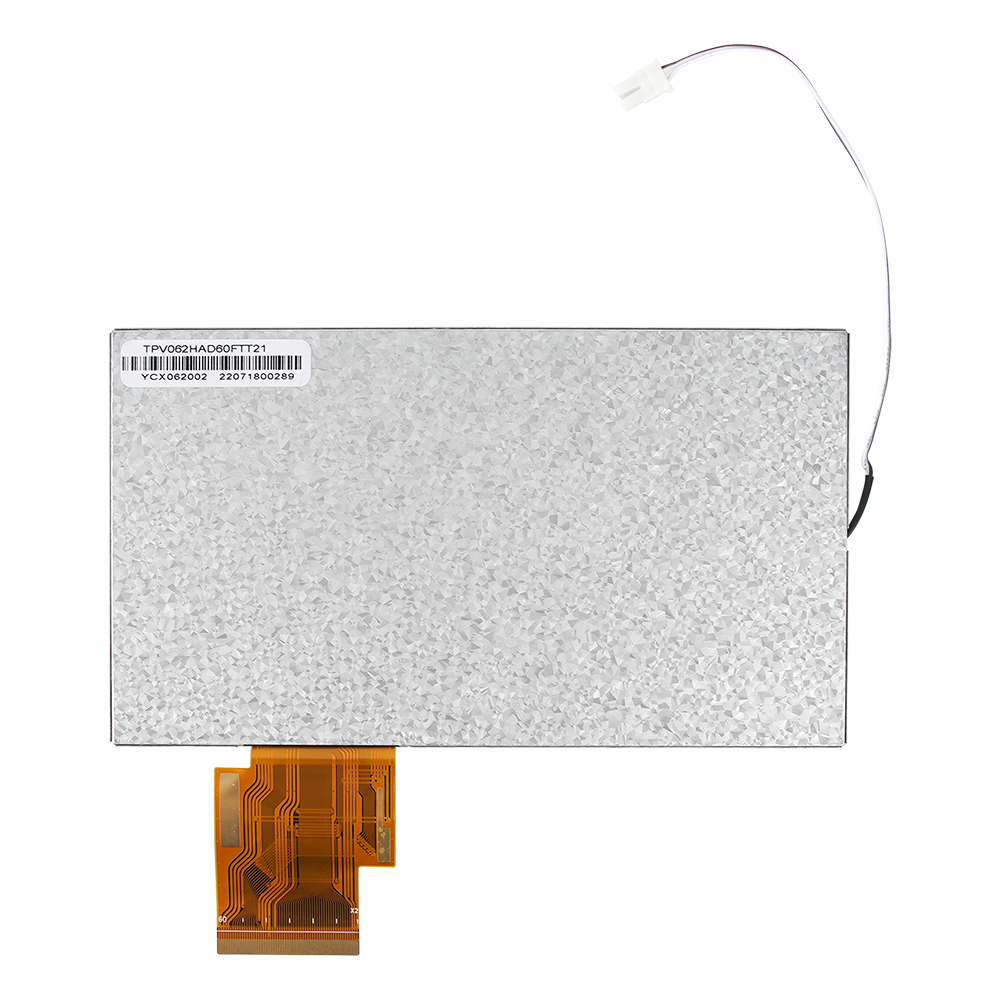

6.2英寸800*480，宽温高亮
-
品牌：TOPVIEW（拓浦）
型号：
规格：800×480 6.2英寸
- 咨询热线：李先生(Jacky)：139 2362 5299 明先生(Mike)：139 2387 9327 李先生(Leo)： 139 1709 9753
-
产品详情
| Item | Specification |
| Brand Name | Topview |
| Display Size | 6.2 inch |
| Aspect Ratio | 16:9 (H:V) |
| Resolution | 800(H) x 480 (V) |
| Active Area | 137.52(H) x 77.232(V)mm |
| Pixel Pitch | 0.1719(H) x 0.1609(V)mm |
| Outline Dimension | 155.2(H) x 88.2(V) x 5.0(D)mm |
| Support color | 262k/16.2M |
| NTSC | 70% |
| Display mode | Normally white(wide angle viewing) |
| View angle | L/R/U/D 75/75/70/70 |
| Brightness | 350 cd/㎡ |
| Contrast Ratio | 600：1 |
| Interface | TTL(6-bit) , 60 pins FPC |
| Backlight | 30k hours, with LED driver |
| Operating temp. | -20℃ ~ +70℃ |
| Storage temp. | -30℃ ~ +80℃ |
-
规格书下载
