| Item | Specification |
| Brand | TOPVIEW |
| Display Size | 12.8 inch |

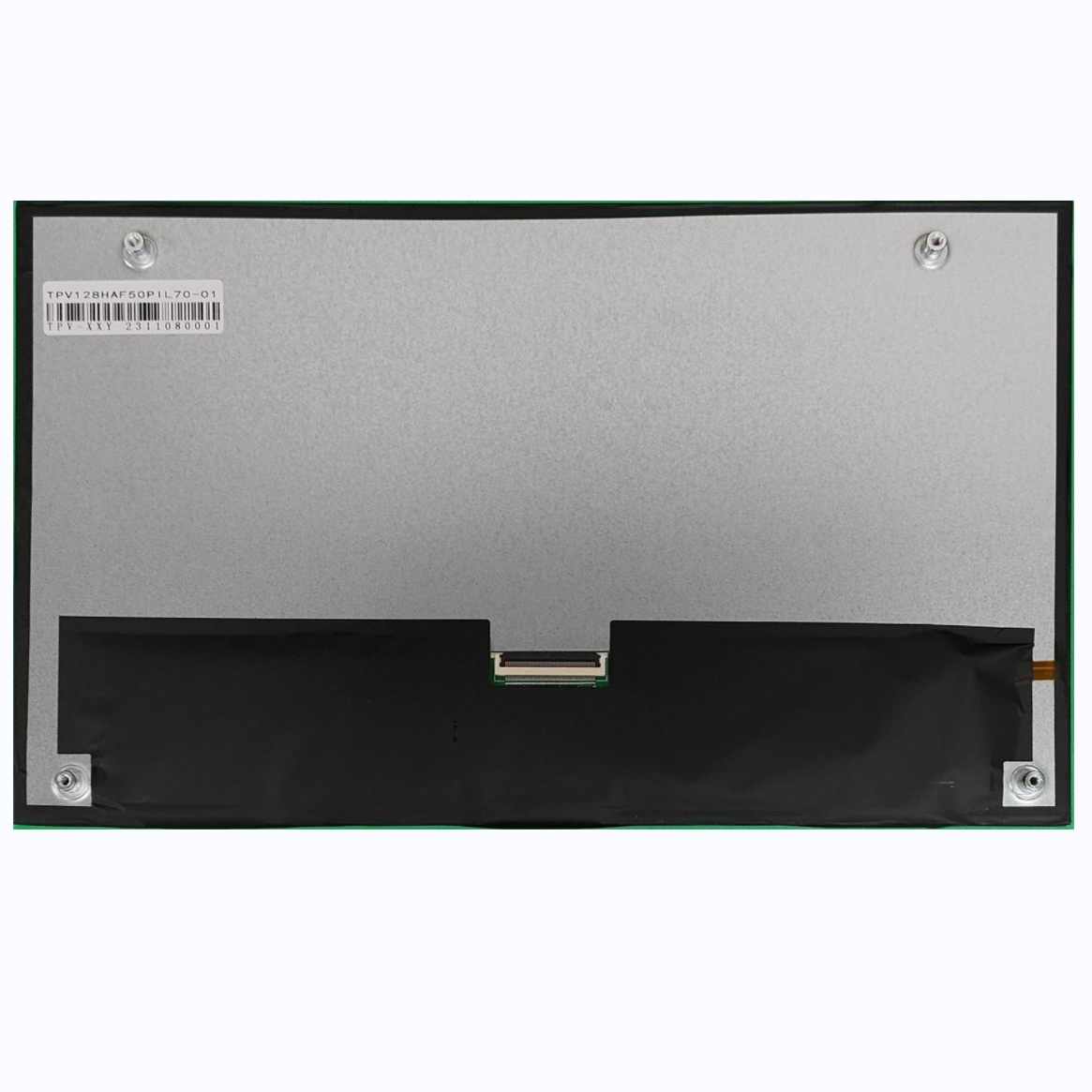

| Model | TPV128HAF50PIL70 |
| Aspect Ratio | 16:9(H:V) |
| Resolution | 1920(H) x1080 (V) |
| Active Area | 283.392(H) x 159.408(V)mm |
| Pixel Pitch | 0.176(H) x 0.1476(V)mm |
| Outline Dimension | 294.4(H) x 175.0(V) x 5(D)mm |
| Support color | 16.7M (6/8bit) |
| Color Gamut | 75% NTSC |
| Display mode | Normally black(IPS) |
| View angle | L/R/U/D 89/89/89/89 |
| Brightness | 700-1000 cd/㎡ |
| Contrast Ratio | 1500：1 |
| Interface | LVDS, 50 pins Connector |
| Backlight | 30000 hours, with LED driver |
| Operating temp. | -30℃ ~ +70℃ |
| Storage temp. | -30℃ ~ +80℃ |
